Universal processing centre Hermle C 30 U + RS2 Roboter
225000 €
0
Universal processing centre Hermle C 30 U + RS2 Roboter
Manufacturer : Hermle
Model: C 30 U
Number of machines : 2

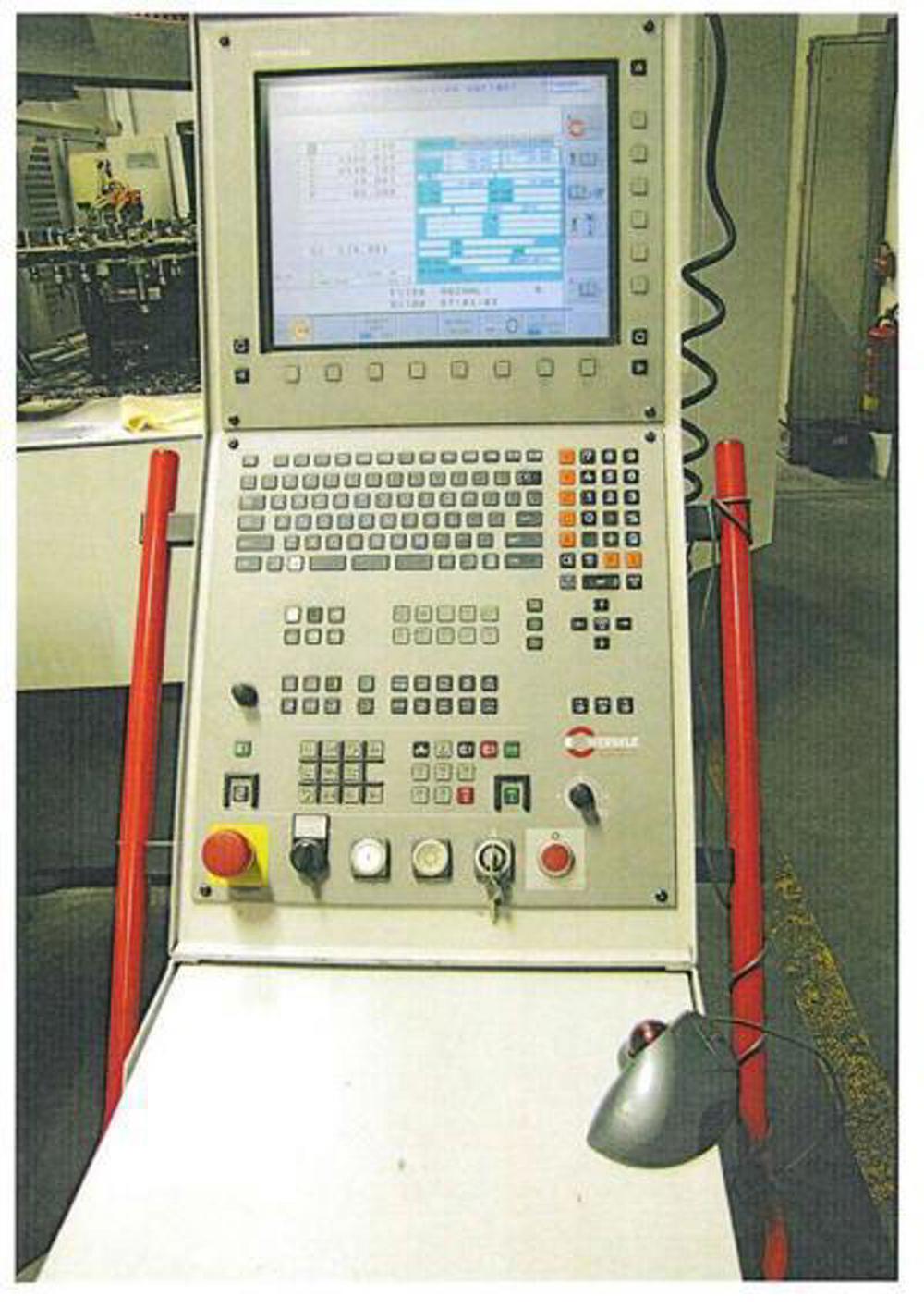

Control : Heidenhain i TNC 530
Year of construction : 2008 / 2009

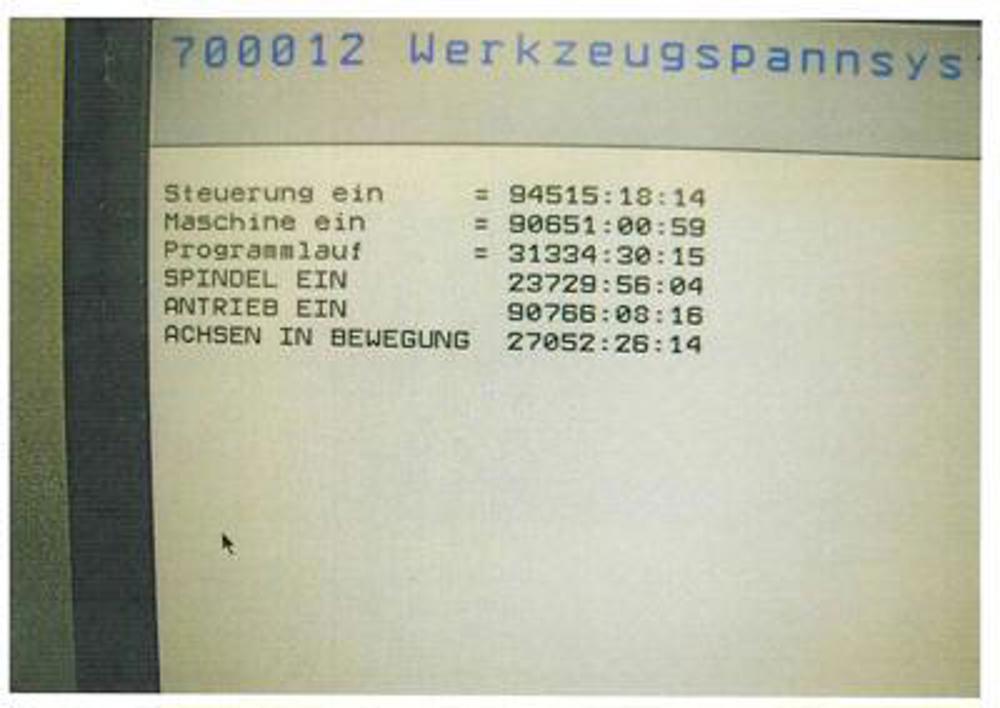

Switch-on hours : approx. 115000 h
Spindle running time : 24400 h
Location : Germany until week 49 / 2023 then from warehouse Sweden
Specifications
Max. spindle speed: 28000 rpm
Spindle mount : HSK A 63
Number of synchronously controlled axes : 5
Travel
X-axis : 650 mm
Y-axis : 600 mm
Z-axis: 500 mm
A-axis : +/- 115 º MM
B-axis : 360°
NC serving table diam. 280 mm

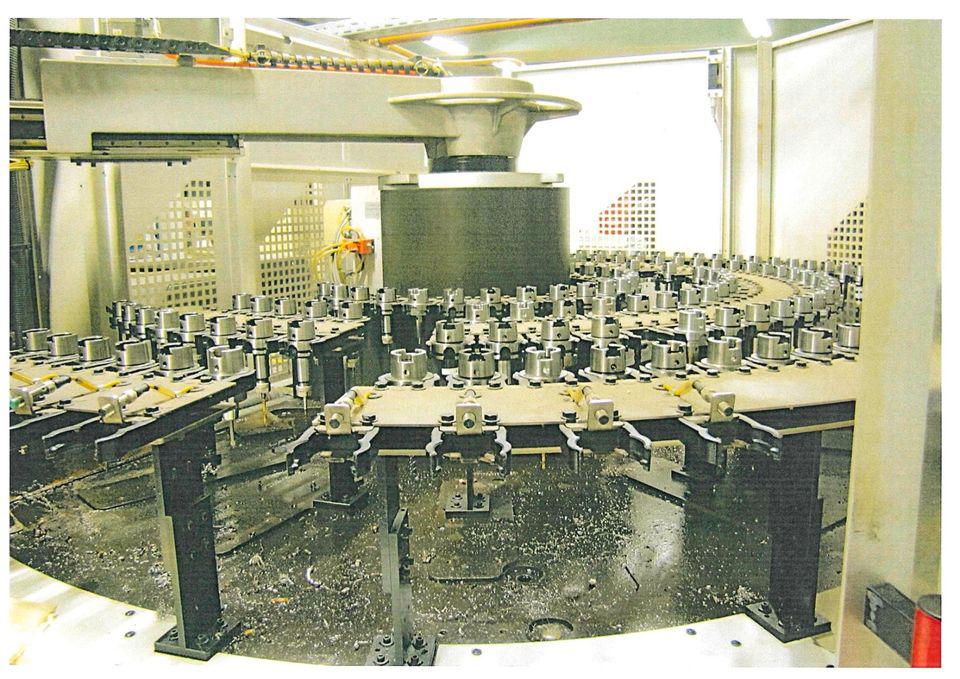

Tool Locations Pick Up: 32 Positions
Additional magazine: 157 lots
Total tool slots : 189 lots
Loading and unloading area: 8 lots
Tool length max.: 300 mm
Tool diameter max. 125 mm
Tool weight max.: 8 kg
Dimensions
Length : 3154 MM
Width : 2354 MM
Height 2892 MM
Machine weight : 10500 KG
Other equipment features
- max. coolant pressure 80 bar possible ( IKZ )
- Touch probe : 2x RENISHAW OMP 40-2LS
- Chip conveyor as hinge belt conveyor made by Knoll
- IKZ
- Blow-off function with the spindle
- Automatic door
- Manual canopy
- iTNC electric handwheel,
- BLUM Laser A1
- Bed flushing
- Magazine expansion
- Tool management: Soflex-TCS 11A9-7C86-7988 version 2.70
- Zero-point clamping system Erowa MTS Basispl. 410 x 410 PA
- Losma extraction system
Information

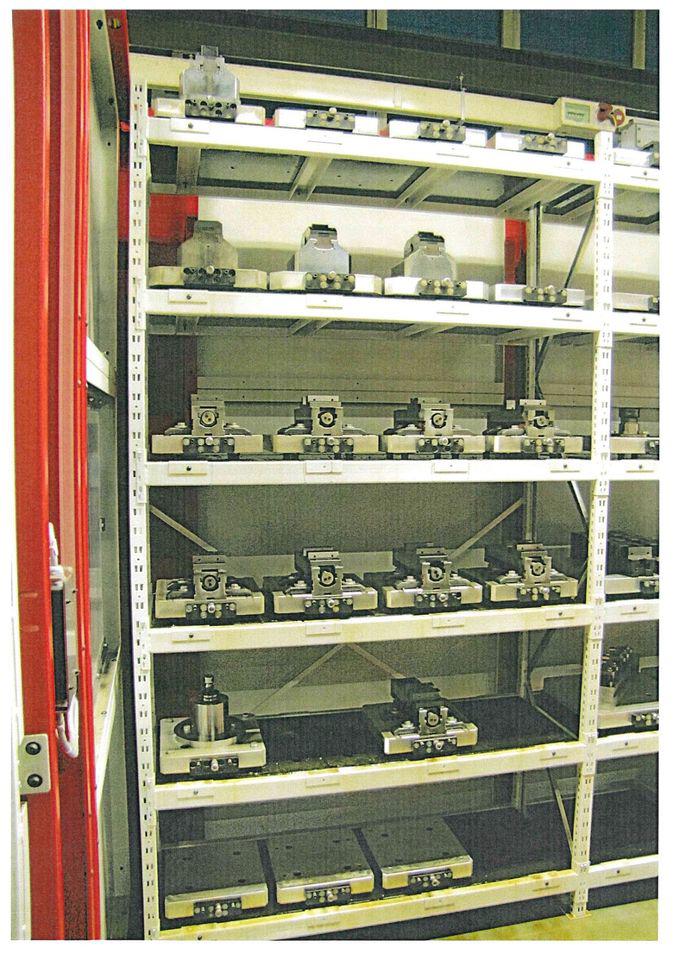

Robot with pallet rack 300x300 with 24 places

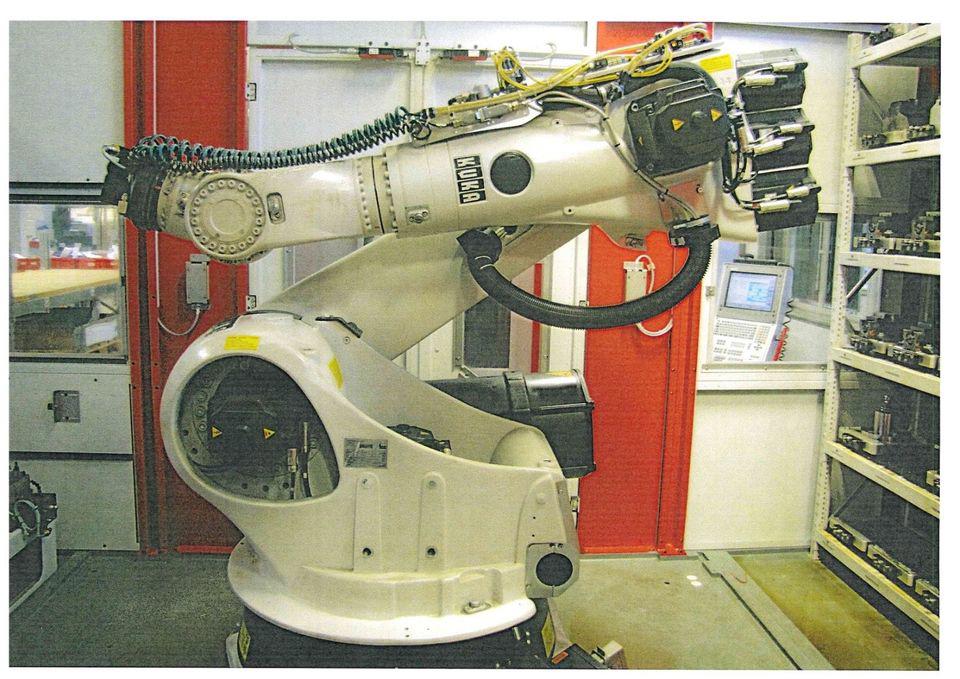

Kuka KR 150 -2 2000 with 6 axles with a max. load capacity of 140kg.
KUKA control system KRC2
KUKA hand-held control unit
Raw material loading via external set-up station

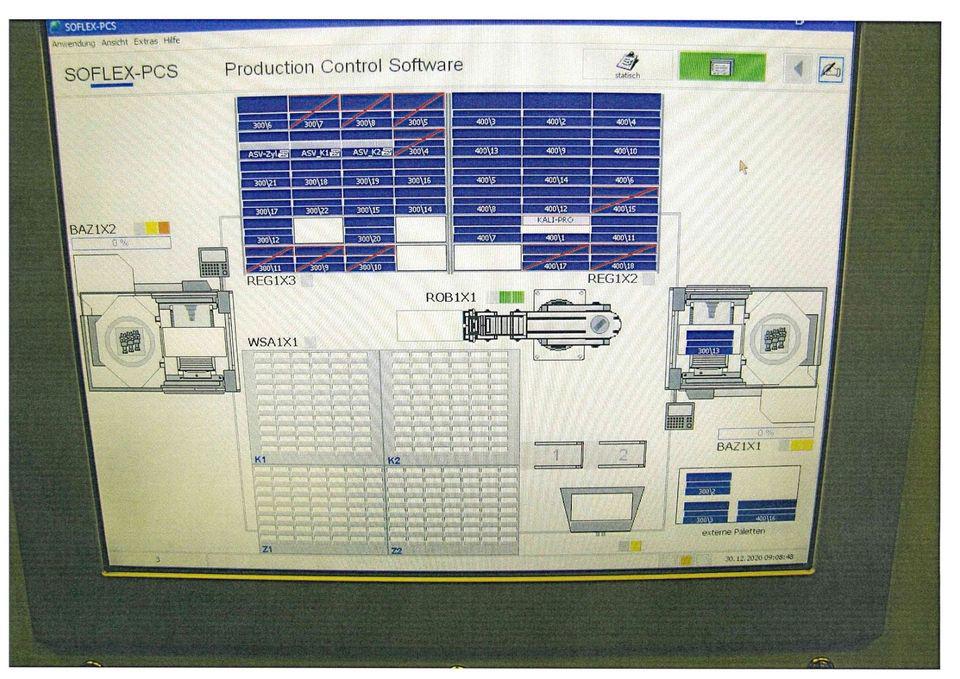

Host computer system Soflex Production-Control-Software Version 4.27
Master computer runs on Windows 10, SOFLEX PCS runs on Windows XP

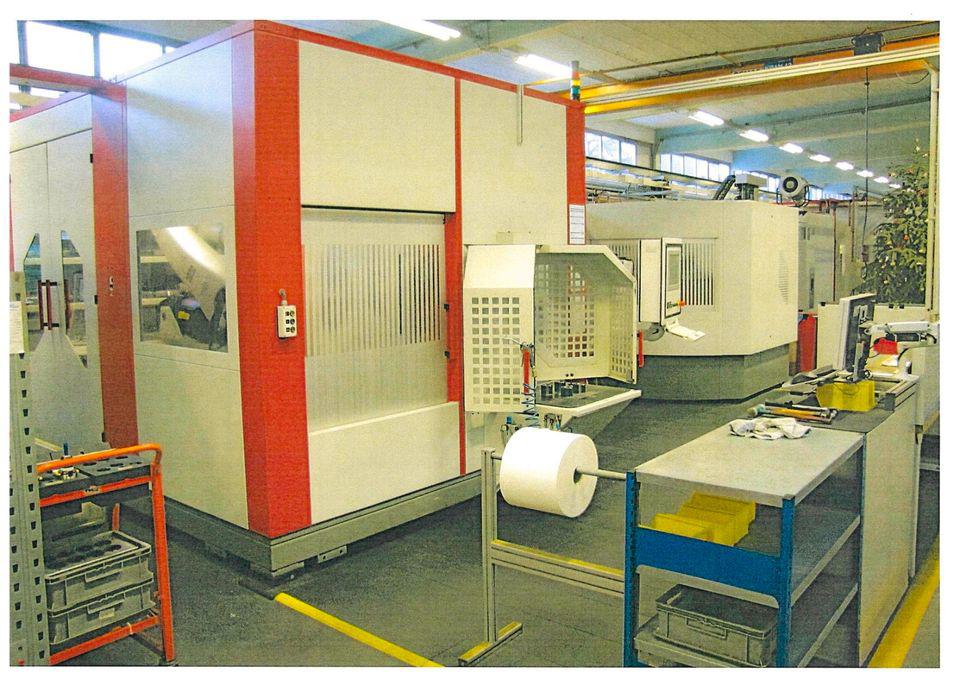

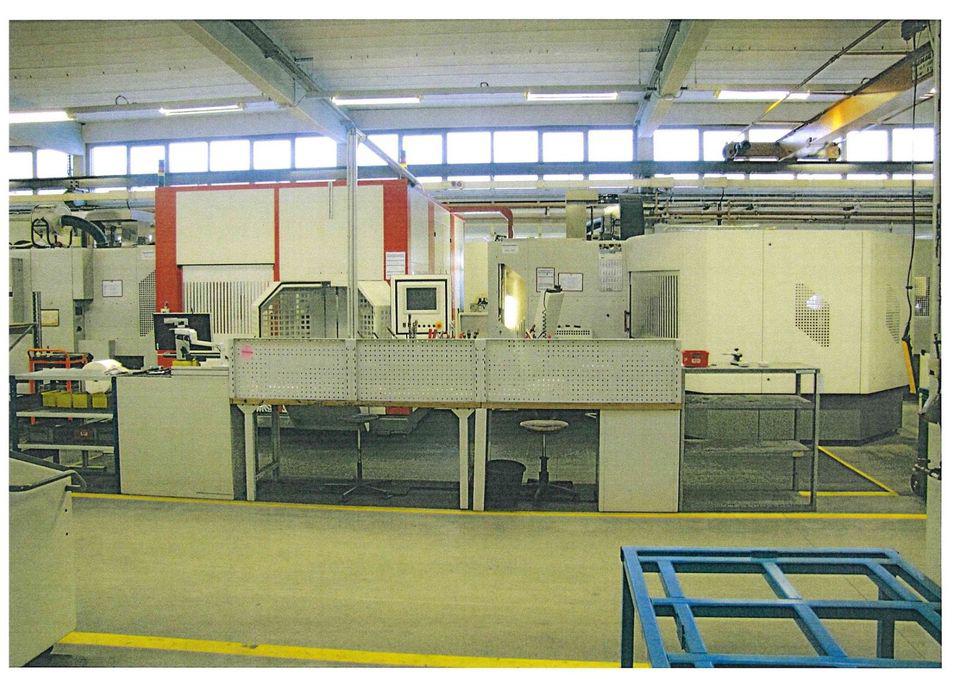

The machine is part of a production cell with 2 C 30 U machines and Kuka robot system and pallet storage.
It is also possible to operate the machine as a single machine
Raw material storage locations
2x raw material storage for cubic parts, each shelf has 60 places for
Decree. Raw material with the dimensions 50x15 can be loaded.
2x raw material tray for cylindrical parts, 56 places are available per shelf. Parts can be equipped with a 6mm spigot.
2x additional grippers ( 1x for cylindrical parts + x1 for cubic parts)
A coolant system is not included in the scope of delivery, but we can offer various used Knoll systems for the machine or production cell
All information has been provided to the best of our knowledge and belief, but we reserve the right to make errors
Subject to prior sale
